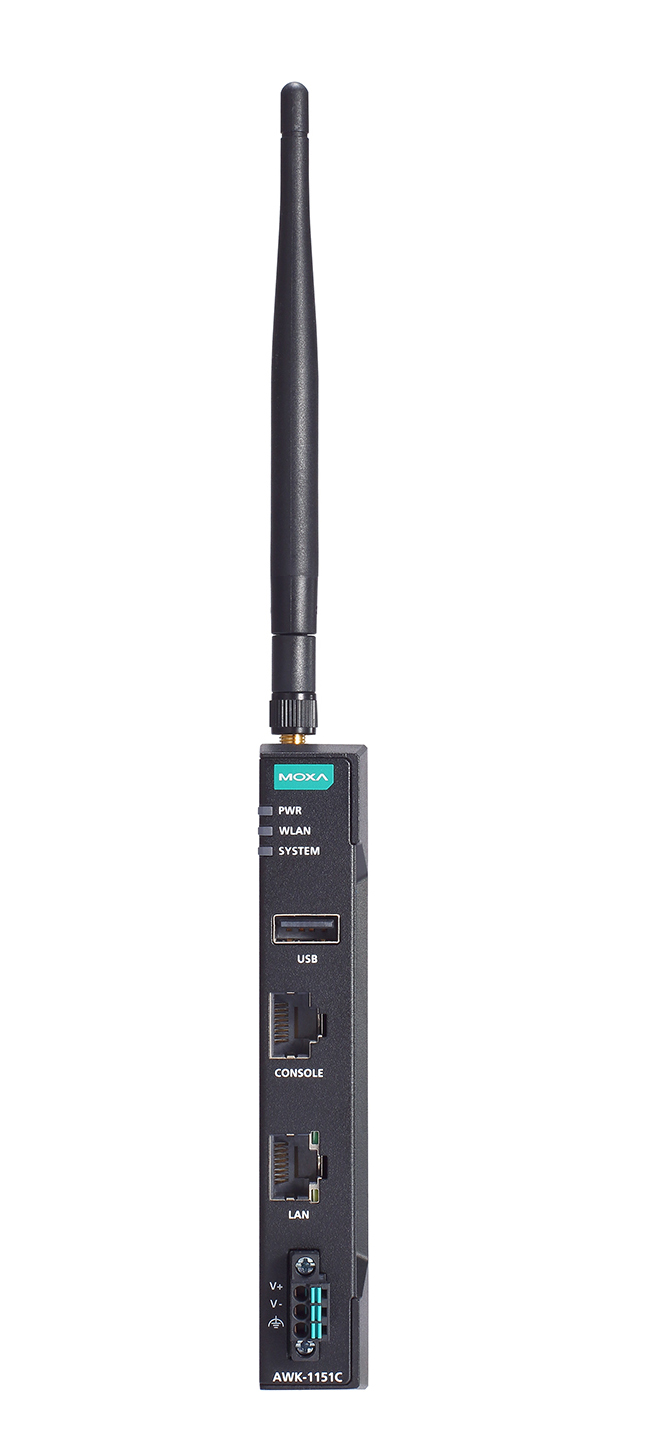

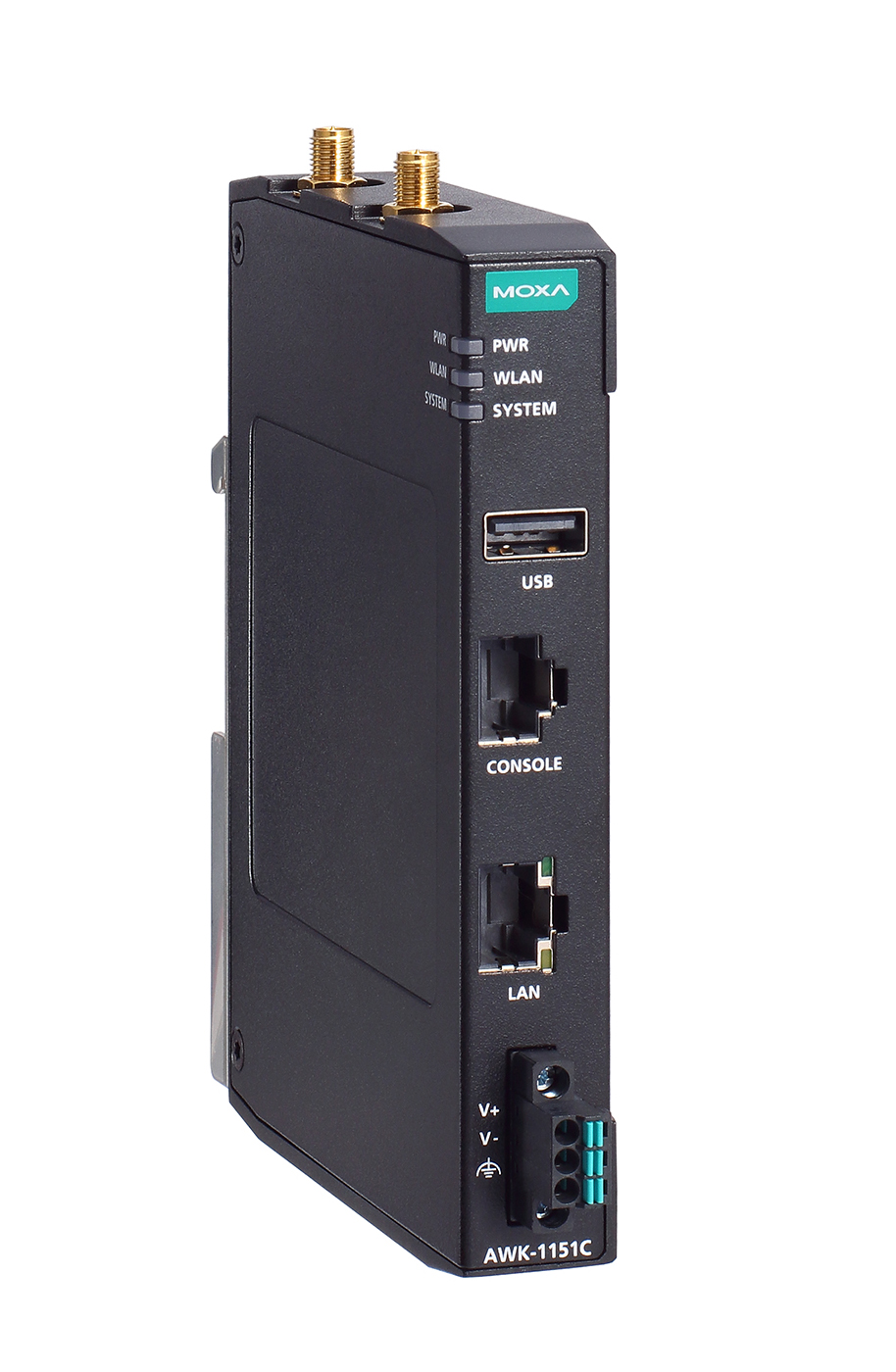

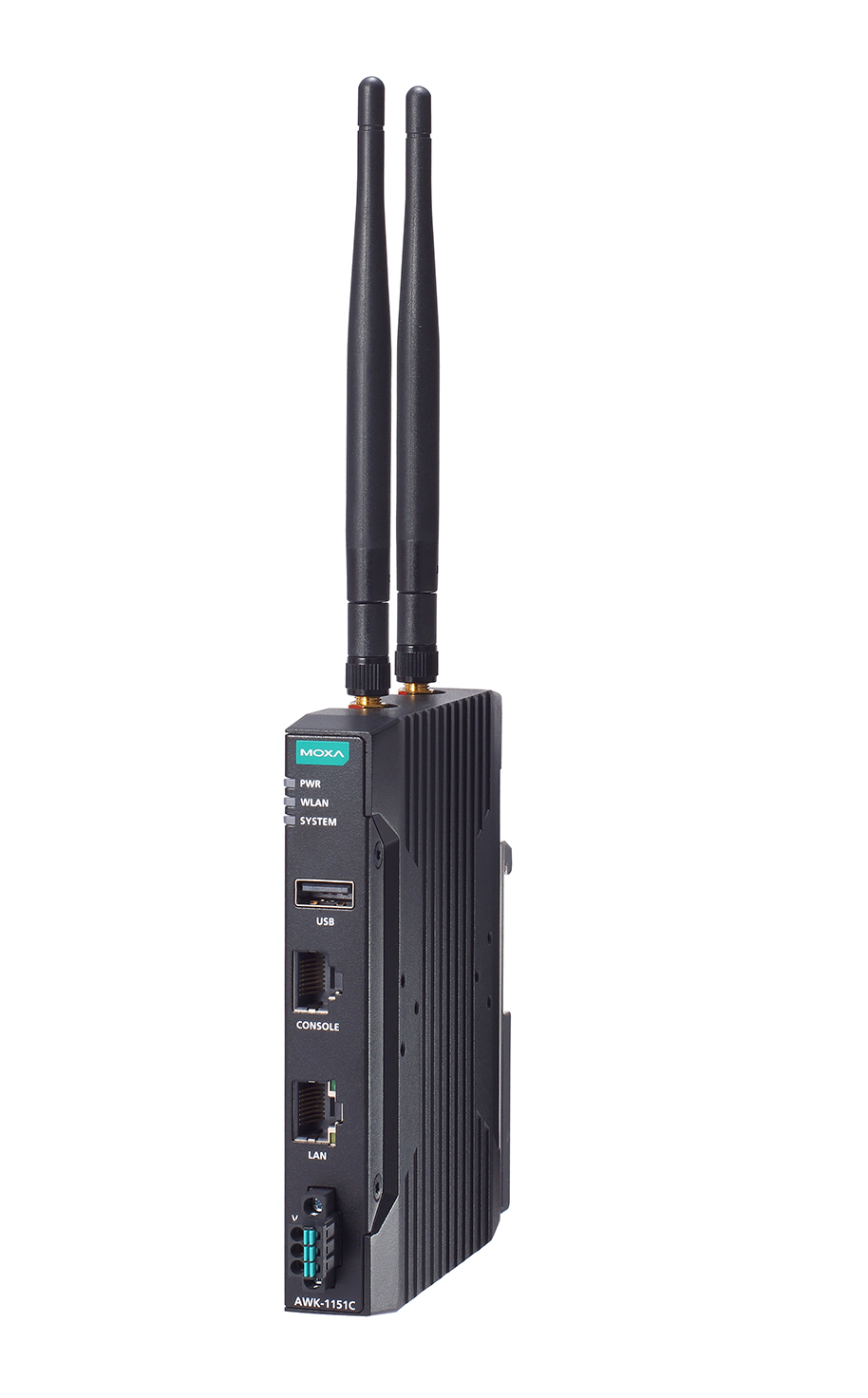

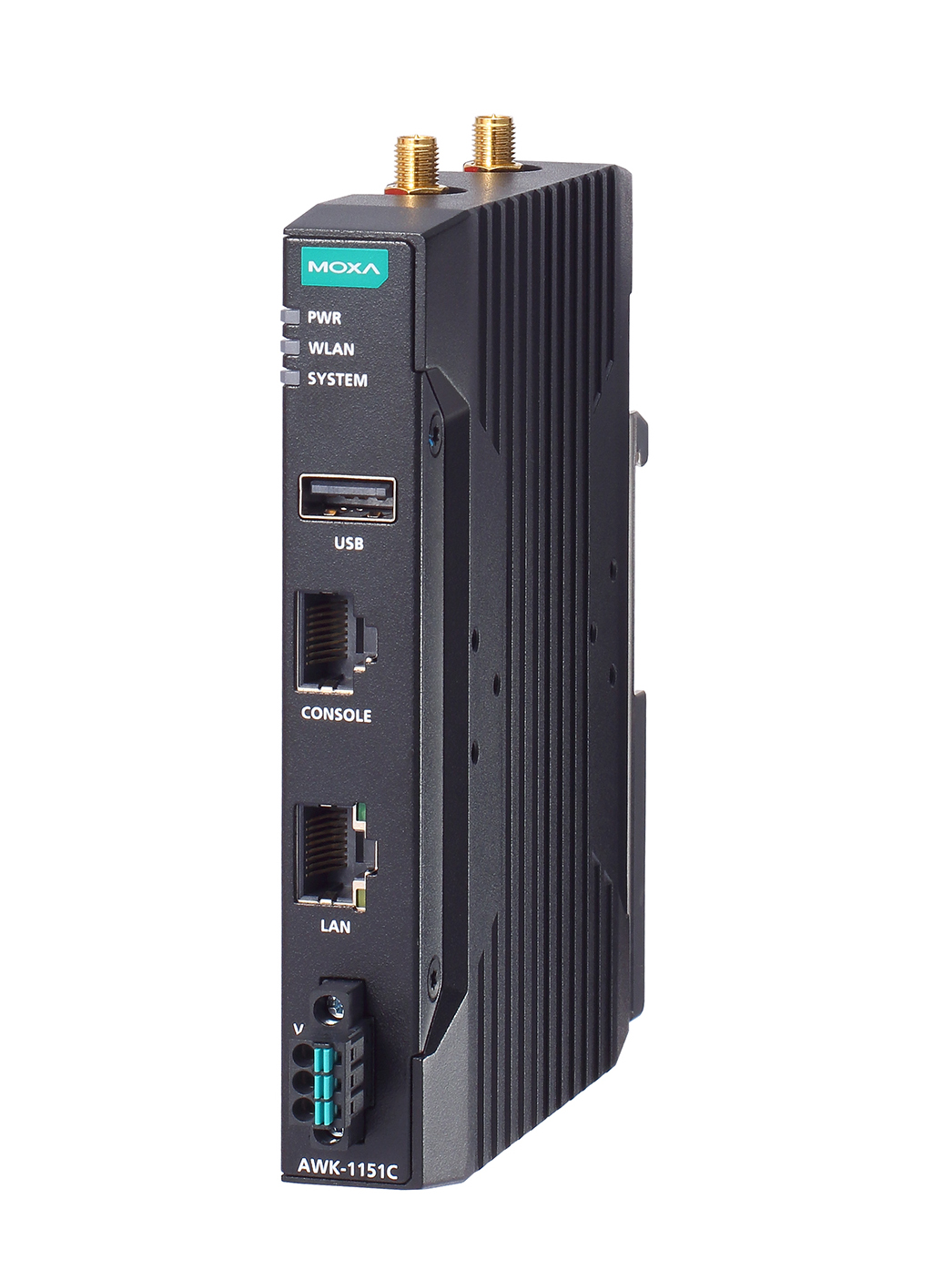

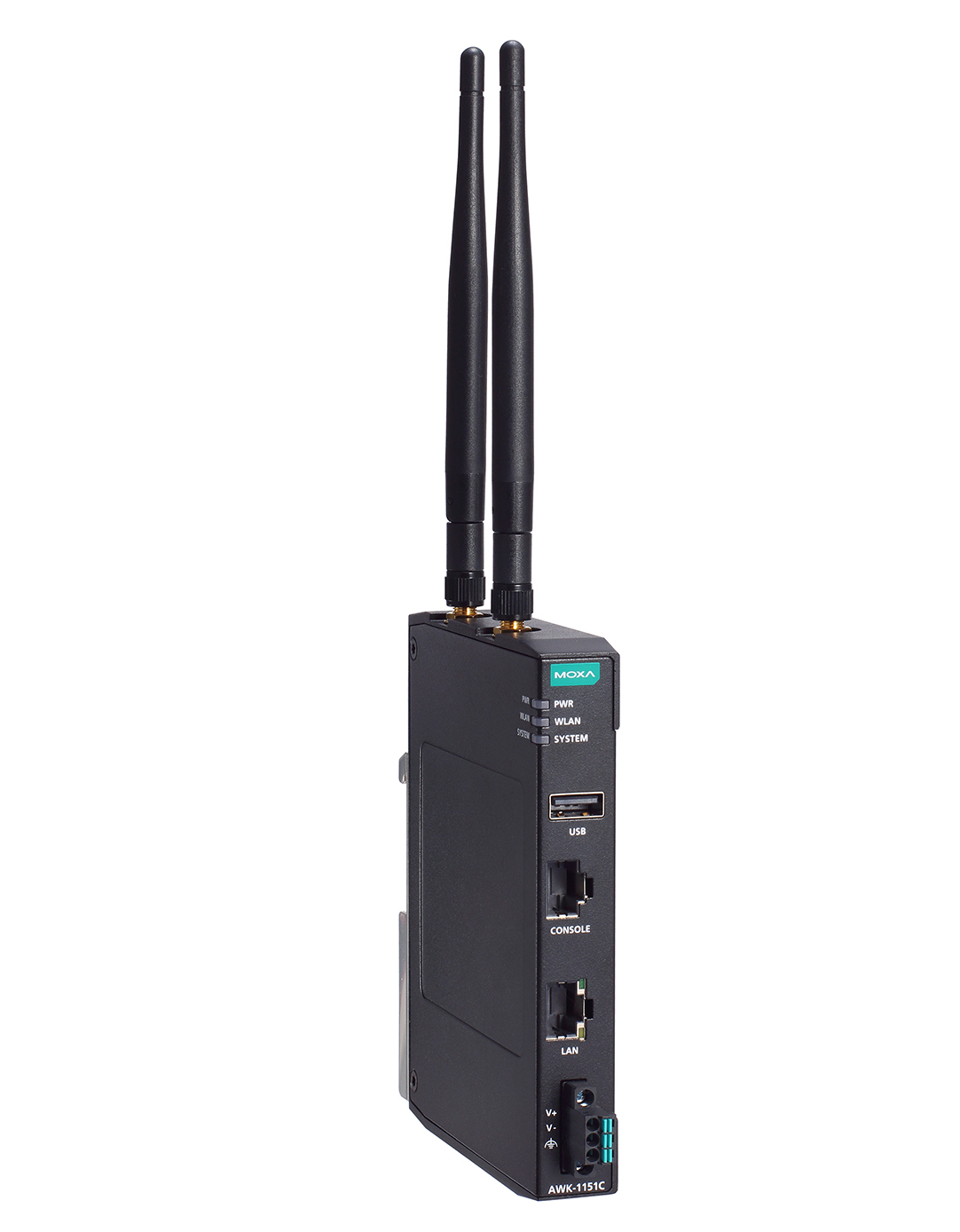

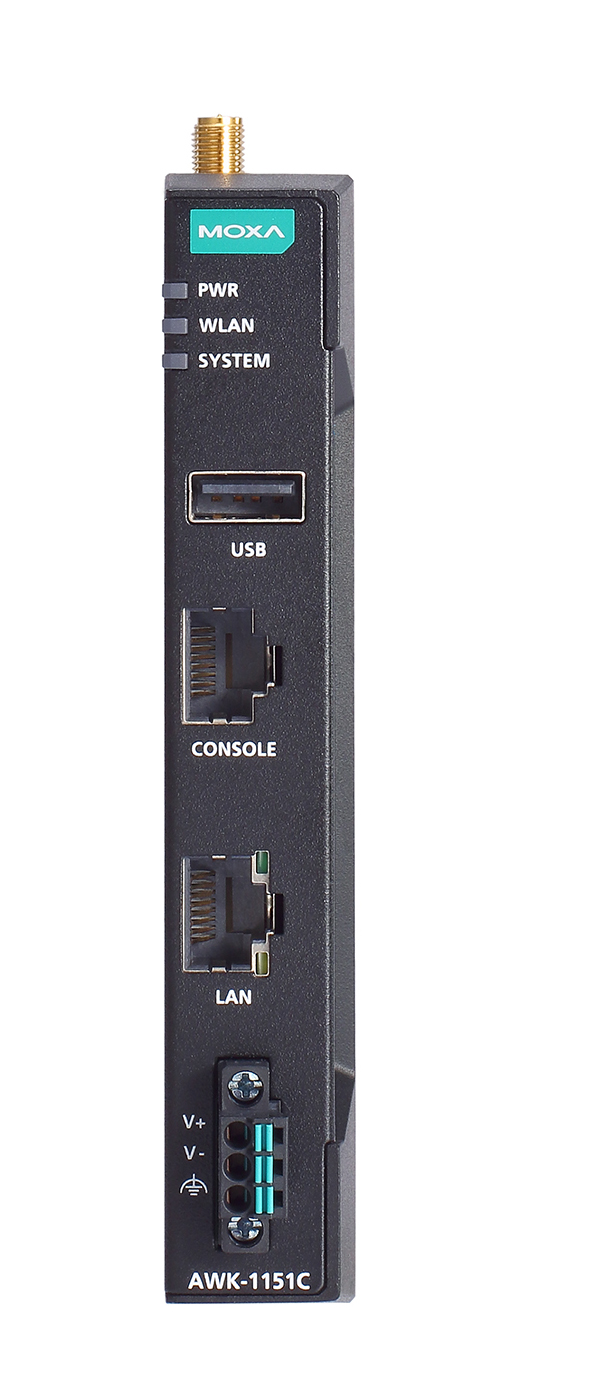

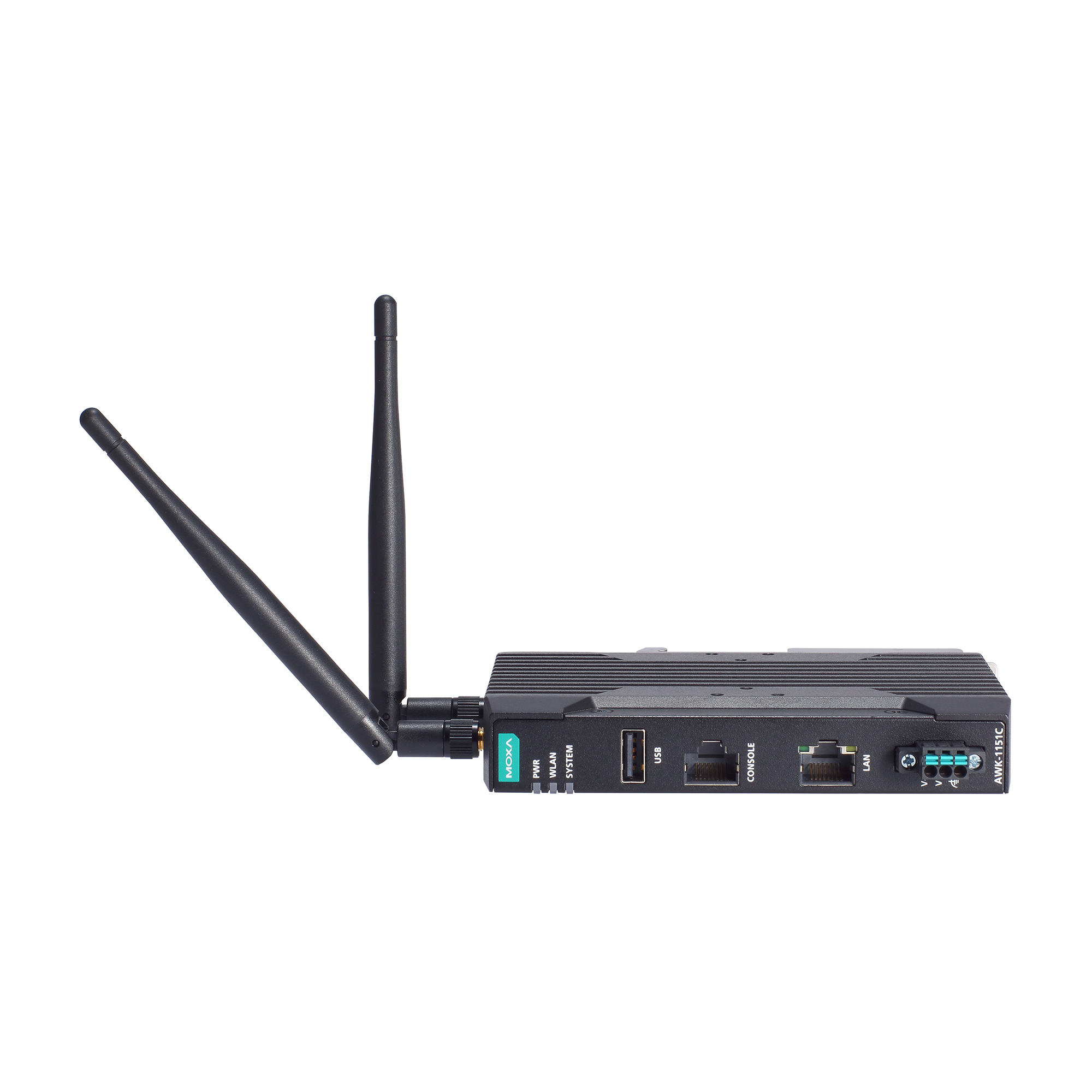

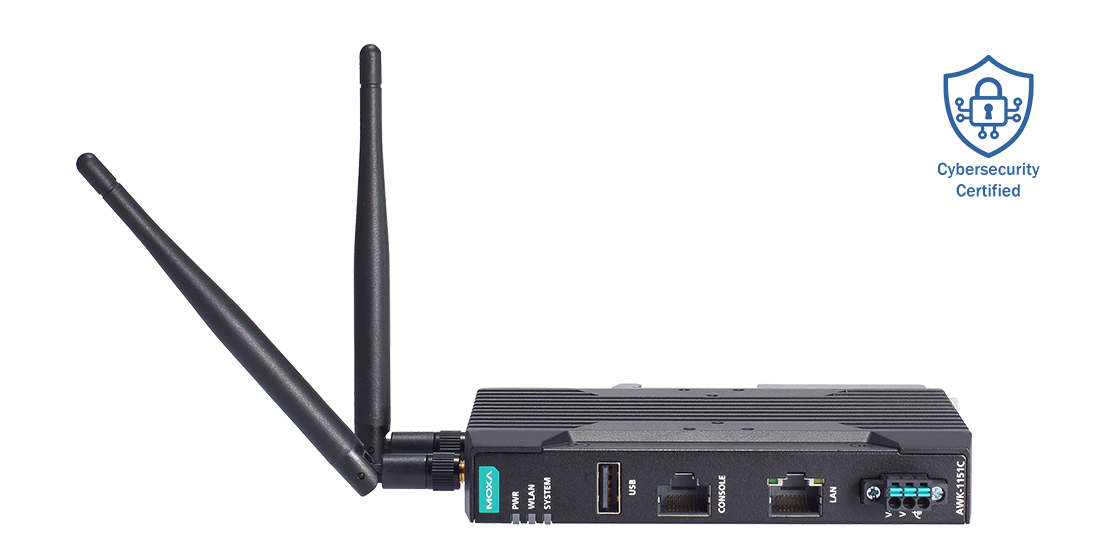

MOXA AWK-1151C Series

The AWK-1151C Series industrial wireless client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for data rates of up to 867 Mbps. The AWK-1151C is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The compact form factor with DIN-rail or optional wall mounting easily fits into industrial machines or control cabinets, offering reliable wireless connectivity. The AWK-1151C can operate on the 2.4 or 5 GHz band and is backwards-compatible with existing 802.11a/b/g/n deployments to future-proof your wireless investments.


Advanced 802.11ac Industrial Wireless Solution

• 802.11a/b/g/n/ac compliant client for flexible deployment
• DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

Advanced Wireless Technology

• Seamless roaming with client-based Turbo Roaming for < 150 ms roaming recovery time between APs (Client Mode)

Industrial Ruggedness

• Integrated antenna isolation designed to provide protection against external electrical interference
• -40 to 75°C wide operating temperature models (-T) provided for smooth wireless communication in harsh environments

Specifications

WLAN Interface


WLAN Standards
2.4 GHz: 802.11b/g/n with 256 QAM support
5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support

Frequency Band for US (20 MHz operating channels)
AWK-1151C US Models Only:
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)2
5.500 to 5.700 GHz (11 channels)2
5.745 to 5.825 GHz (5 channels)

Frequency Band for UN (20 MHz operating channels)
AWK-1151C UN Models Only:
2.412 to 2.484 GHz (14 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)3
5.500 to 5.700 GHz (11 channels)3
5.745 to 5.825 GHz (5 channels)
Available channels change depending on the selected country or region code.

Wireless Security
WEP encryption (64-bit and 128-bit)
WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2/WPA3-Personal

Transmission Rate
2.4 GHz:
802.11b: 1 to 11 Mbps
802.11g: 6 to 54 Mbps
802.11n: 6.5 to 400 Mbps
5 GHz:
802.11a: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps
802.11ac: 6.5 to 867 Mbps

Transmitter Power for 802.11a (Dual Chain)
25±1.5 dBm @ 6 Mbps
23±1.5 dBm @ 54 Mbps

Transmitter Power for 802.11n (5 GHz, Dual Chain)
25±1.5 dBm @ MCS0 20 MHz
22±1.5 dBm @ MCS7 20 MHz
24±1.5 dBm @ MCS0 40 MHz
22±1.5 dBm @ MCS7 40 MHz

Transmitter Power for 802.11ac (Dual Chain)
25±1.5 dBm @ MCS0 20 MHz
22±1.5 dBm @ MCS8 20 MHz
24±1.5 dBm @ MCS0 40 MHz
21±1.5 dBm @ MCS9 40 MHz
23±1.5 dBm @ MCS0 80 MHz
20±1.5 dBm @ MCS9 80 MHz

Transmitter Power for 802.11b (Dual Chain)
29±1.5 dBm @ 1 Mbps
29±1.5 dBm @ 11 Mbps

Transmitter Power for 802.11g (Dual Chain)
29±1.5 dBm @ 6 Mbps
26±1.5 dBm @ 54 Mbps

Transmitter Power for 802.11n (2.4 GHz, Dual Chain)
28±1.5 dBm @ MCS0 20 MHz
25±1.5 dBm @ MCS7 20 MHz
28±1.5 dBm @ MCS0 40 MHz
25±1.5 dBm @ MCS7 40 MHz

Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
Typ. -89 @ 6 Mbps
Typ. -72 @ 54 Mbps

Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
Typ. -89 dBm @ MCS0 20 MHz
Typ. -69 dBm @ MCS7 20 MHz
Typ. -85 dBm @ MCS0 40 MHz
Typ. -66 dBm @ MCS7 40 MHz

Receiver Sensitivity for 802.11ac Typ. -88 dBm @ MCS0 20 MHz
Typ. -65 dBm @ MCS8 20 MHz
Typ. -85 dBm @ MCS0 40 MHz
Typ. -60 dBm @ MCS9 40 MHz
Typ. -81 dBm @ MCS0 80 MHz
Typ. -55 dBm @ MCS9 80 MHz

Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
Typ. -96 dBm @ 1 Mbps
Typ. -88 dBm @ 11 Mbps

Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
Typ. -90 dBm @ 6 Mbps
Typ. -74 dBm @ 54 Mbps

Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
Typ. -90 dBm @ MCS0 20 MHz
Typ. -70 dBm @ MCS7 20 MHz
Typ. -87 dBm @ MCS0 40 MHz
Typ. -69 dBm @ MCS7 40 MHz

WLAN Operation
Mode Client, Client-Router, Slave, Sniffer

Antenna
External, 2/2 dBi, Omni-directional

Antenna Connectors
2 RP-SMA female



Ethernet Interface


Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3af for PoE
IEEE 802.3at for PoE
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication

10/100/1000BaseT(X) Ports (RJ45 connector)
1



Ethernet Software Features


Management
DHCP Client, DNS, HTTP, IPv4, LLDP, SMTP,
SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, MXconfig

Routing
Port forwarding, Static Route, NAT

Security
HTTPS/SSL, RADIUS, SSH

Time Management
SNTP Client



Firewall


Filter
ICMP, MAC address, IP protocol, Port-based



Serial Interface


Console Port
RS-232, 8-pin RJ45



USB Interface


Storage Port
USB Type A



LED Interface


LED Indicators
PWR, WLAN, SYSTEM



Input/Output Interface


Buttons
Reset button



Physical Characteristics


Housing
Metal

IP Rating
IP30

Dimensions
100 x 130 x 22 mm (3.94 x 5.12 x 0.87 in)

Weight
436 g (0.96 lb)

Installation
DIN-rail mounting, Wall mounting (with optional kit)



Power Parameters


Input Current
9 to 30 VDC, 1.57 to 0.47 A

Input Voltage
9 to 30 VDC

Power Connector
1 removable 3-contact terminal block(s)

Power Consumption
14 W (max.)



Environmental Limits


Operating Temperature
Standard Models: -25 to 60°C (-13 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)



Standards and Certifications


EMC
EN 61000-6-2/-6-4, EN 55032/35

EMI
CISPR 32, FCC Part 15B Class A

EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V/m
IEC 61000-4-8 PFMF: 30 A/m

Road Vehicles
E mark E1

Safety
IEC 60950-1, IEC 62368-1, UL 62368-1

Vibration
IEC 60068-2-6

Radio
EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL,
FCC, MIC, NCC, RCM, SRRC, WPC, KC, IC



MTBF


Time
1,144,888 hrs

Standards
Telcordia SR332

1. The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
2. DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
3. DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

Package Contents

Device
1 x AWK-1151C Series wireless client

Installation Kit
1 x DIN-rail kit

Antenna
2 x 2.4/5 GHz antenna

Documentation
1 x quick installation guide
1 x warranty card

Ordering Information

Model Name	Band	Standards	Operating Temp.
AWK-1151C-UN	UN	802.11a/b/g/n/ac Wave 2	-25 to 60°C
AWK-1151C-UN-T	UN	802.11a/b/g/n/ac Wave 2	-40 to 75°C
AWK-1151C-US	US	802.11a/b/g/n/ac Wave 2	-25 to 60°C
AWK-1151C-US-T	US	802.11a/b/g/n/ac Wave 2	-40 to 75°C

Accessories (sold separately)

Antennas
ANT-WSB-PNF-12-02	12 dBi at 2.4 GHz, N-type (female), single-band directional antenna
ANT-WSB5-PNF-16	16 dBi at 5 GHz, N-type (female), single-band directional antenna
ANT-WDB-ONM-0707	07 dBi at 2.4 GHz and 07 dBi at 5 GHz, N-type (male), dual-band omnidirectional antenna
ANT-WDB-PNF-1011	10 dBi at 2.4 GHz and 11 dBi at 5 GHz, N-type (female), dual-band directional antenna
ANT-WDB-ONF-0709	7 dBi at 2.4 GHz or 9 dBi at 5 GHz, N-type (female), dual-band, omnidirectional antenna
ANT-WDB-ANM-0306	3 dBi at 2.4 GHz or 6 dBI at 5 GHz, N-type (male), omnidirectional antenna
ANT-WDB-ARM-02	2 dBi at 2.4 GHz or 2 dBi at 5 GHz, RP-SMA (male) omnidirectional rubber-duck antenna
ANT-WDB-ARM-0202	2 dBi at 2.4 GHz or 2 dBi at 5 GHz, RP-SMA (male), dual-band, omnidirectional antenna
ANT-WSB-AHRM-05-1.5m	5 dBi at 2.4 GHz, RP-SMA (male), omnidirectional/dipole antenna, 1.5 m cable
MAT-WDB-CA-RM-2-0205	2.4/5 GHz, ceiling antenna, 2/5 dBi, MIMO 2x2, RP-SMA-type (male)
MAT-WDB-DA-RM-2-0203-1m	2.4/5 GHz, desktop antenna, 2/3 dBi, MIMO 2x2, RP-SMA-type (male), 1 m cable
MAT-WDB-PA-NF-2-0708	2.4/5 GHz, panel antenna, 7/8 dBi, MIMO 2x2, N-type (female)
ANT-WDB-ANM-0502	5 dBi at 2.4 GHz or 2 dBI at 5 GHz, N-type (male), omnidirectional antenna
Wireless Antenna Cables
A-CRF-RFRM-R4-150	RF magnetic base, RP-SMA (male) to RP-SMA (female) RG-174/U cable, 1.5 m
A-CRF-RMNM-L1-300	N-type (male) to RP SMA (male) LMR-195 Lite cable, 3 m
A-CRF-RMNM-L1-600	N-type (male) to RP SMA (male) LMR-195 Lite cable, 6 m
A-CRF-RMNM-L1-900	N-type (male) to RP SMA (male) LMR-195 Lite cable, 9 m
Surge Arrestors
A-SA-NMNF-02	0 to 6 GHz, N-type (male) to N-type (female) surge arrester
A-SA-NFNF-02	0 to 6 GHz, N-type (female) to N-type (female) surge arrester
Wireless Terminating Resistors
A-TRM-50-NM	50-ohm termination resistor with N-type male connector
Wall-Mounting Kits
WK-35-01	Wall-mounting kit with 2 plates (35 x 44 x 2.5 mm) and 6 screws
