Advantech PPC-6191C

The PPC-6191C, a panel PC chassis with 19" TFT LED screen, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern. PPC-6191C is a true flat bezel which meets market trends demanding for a stylish look and provides additional backup port and expansion slot in order to accommodate customers’ various application needs.

Specifications

Model Name	PPC-6191C-RMAE	PPC-6191C-RTAE
Chassis Feature
Storage	2x2,5" SATA HDD bay	1x2,5" SATA HDD bay

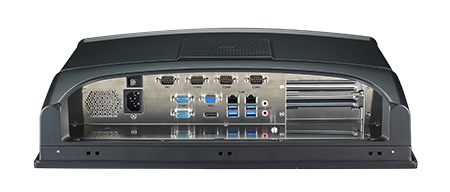

I/O ports	1x AC inlet; 1x Power Switch; 1x DP port (input, for connecting M/B and LVDS panel); 1x USB 2.0 (input,f or connecting M/B and touch controller); Reserved opening: Based on M(Bs specific	1x AC inlet;1x Power Sitch; Reserverd opening: Based on M/B PPC-MB- 8260AEs specific
Speaker	2x 1W	2x 1W
Fan	2x 12V, 60 x 60 x 15mm	2x 12V, 60 x 60 x 15mm
Expansion	1x PCIe x4 or 1x PCI (in the accessory box)	1x PCIe x4 or 2x PCI (in the accessory box); 2x PCIe x1 (optional); 1x PCI x1 + 1x PCI (optional)

Physical Characteristics

Dimensions	454 x 379,8 x 107,5 mm (17,9" x 15" x 4,2")	454 x 379,8 x 107,5 mm (17,9" x 15" x 4,2")
Weight	5,8 kg (12,8lb)	5,8 kg (12,8lb)

OS Support

OS Support

According to motherboard specifications

According to motherboard specifications

Power Supply

Input Voltage

100 - 240V AC, 50/60Hz, 4-2A

100 - 240V AC, 50/60Hz, 4-2A

LCD Display

Display Type	19" TFT LED Panel	19" TFT LED Panel
Max. Resolution	1280x1024	1280x1024
Viewing Angle (H/V)	85°(left), 85°(right), 80°(up), 80°(down)	85°(left), 85°(right), 80°(up), 80°(down)
Luminance (cd/m2)	350	350
Contrast Ratio	100:1	100:1
Backlight Life	50.000 hrs	50.000 hrs

Touch Screen

Type	Analog Resistive 5-wire/Projected capacitive type (optional)	Analog Resistive 5-wire/Projected capacitive type (optional)
Light Transmission	80+/-5%	80+/-5%
Controller	USB Interface	USB Interface
Durability (Touches)	35 milion	35 milion

Environment

Operating Temperature	0 ~ 50°C (32 ~ 122°F);0 ~ 45°(32 ~ 113°F) with VESA mount module	0 ~ 50°C (32 ~ 122°F);0 ~ 45°(32 ~ 113°F) with VESA mount module
Storage Temperature	-30 ~ 60°C (-22 ~ 140°F)	-30 ~ 60°C (-22 ~ 140°F)
Relative Humidity (Non-condensing)	10 ~ 95% @ 40°C (non-condensing)	10 ~ 95% @ 40°C (non-condensing)
Shock	Operating 10G peak acceleration (11ms duration), follows IEC 60068-2-27	Operating 10G peak acceleration (11ms duration), follows IEC 60068-2-27
Vibration	Operating: Random vibration test 5 ~ 500Hz, 1Grms @ with HDD, IEC 60068-2-64 compliant	Operating: Random vibration test 5 ~ 500Hz, 1Grms @ with HDD, IEC 60068-2-64 compliant
EMC	CE,FCC Class A	BSMI, CE, FCC Class A
Safety	CB, CCC, UL	BSMI, CB, CCC, UL
Front Panel Protection	IP65 Compliant	IP65 Compliant
