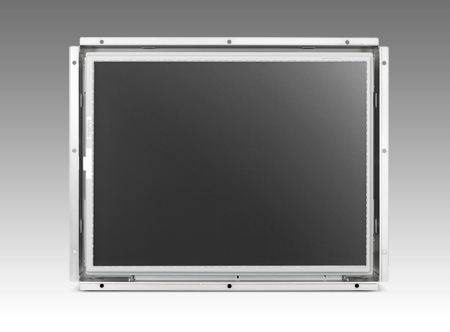

Advantech IDS-3110
10.4" 800 x 600, VGA/DVI interface, Ultra Slim Touch Open Frame Monitor
Les caractéristiques
Présentation
Plus d'information
Voir les produits similaires
Imprimer la fiche produit
Demander votre devis
Votre liste de demandes de devis
PDF
Les caractéristiques
Présentation
Plus d'information
PDF
- 10.4" 800 x 600 SVGA LED panel with LED backlight for 20% power saving and environmental protection
- -20°C~+60°C wide operating temperature support
- 5-wires resistive touchscreen solution
- Combo touch interface of RS-232 and USB
- Dual signal interface with VGA and DVI
- Integrated bracket for easy installation

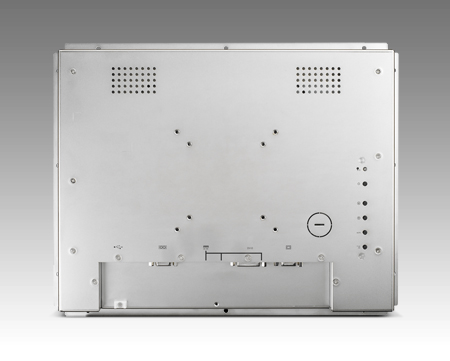

- Versatile mounting methods for Rear mounting and VESA mounting
- Anti-Reflective surface treatment for sunlight readable enhancement (optional)
- Ultra high brightness solution of 1200 nits for outdoor application (optional)
The Advantech IDS-3110 Open Frame Monitor Series offer ultra slim design supporting a 10.4" 800 x 600 pixels TFT LCD screen, with -20 ~ +60° C wide operating temperature, and optional resistive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
| Model | IDS-3110 | IDS-3110E |
| Display | ||
| Size | 10.4" LED panel | 10.4" LED panel |
| Resolution | 800 x 600 (SVGA) | 800 x 600 (SVGA) |
| Viewing Angle | 80°/80° (H), 60°/80° (V) | 80° /80° (H), 60° /70° (V) |
| Brightness | 400 (cd/m2) | 230 (cd/m2) |
| Color Support | 16.2M / 262K colors | 16.2M / 262K colors |
| Contrast Ratio | 700:1 | 700:1 |
| Response Time | 30 [msec] | 35 [msec] |
| Backlight Life (hrs) | 50,000 hrs | 30,000 hrs |
| Touchscreen | ||
| T/S Type | 5-Wire Resistive Touchscreen | - |
| Surface Hardness | 3H | - |
| Durability | 36 million touches | - |
| Transparency | 81%+/-3% | - |
| Environment | ||
| Operating Temperature | -20 ~ 60° C (-4 ~ 140° F) | 0~ 45° C (32 ~ 113° F) |
| Storage Temperature | -30 ~ 70° C (-22 ~ 158° F) | -20 ~ 60° C ( -4 ~ 140° F) |
| Humidity | 5 ~ 95% @ 40° C, non-condensing | |
| Vibration | 5-500Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z 1 hour per axis | |
| System | ||
| I/O | VGA x 1; DVI-D x 1; 12 V DC Jack x 1; USB x1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only) | VGA x 1; 12 V DC Jack x 1; USB x1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only |
| OSD | Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off Menu Functions: Brightness, Contrast, Screen Settings, Color Temp, Language OSD Settings, VGA/ DVI , Recall , Auto Adjust | Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, and Language |
| Power | 36 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 3 A output | |
| EMC Compliance | CE/FCC/CCC | |
| PACKING LIST | |
| 1700002215 | 1 x M Cable USB-A(M)/USB-A(M) 180 cm |
| 1700021332-01 | 1 x VGA cable 15P(M) 180 cm |
| 1962055040 | 4 x clamper |
| 1935042520 | 4 x clamper screws M4_25L |
| 1992610005 | 1 x cable clamp |
| 1933030500 | 1 x cable clamp screw |
| 1992602010 | 1 x cable tie |
- * USB Cable is only included in IDS-3110R and IDS-3110ER series.
Note: Package contents are subject to change without prior notice
| ORDERING INFORMATION | |
| IDS-3110N-40SVA1E | 10.4" SVGA 400 cd/m2 LED Open Frame Monitor |
| IDS-3110R-40SVA1E | 10.4" SVGA 400 cd/m2 LED Open Frame Touch Monitor |
| IDS-3110EN-23SVA1E | 10.4" SVGA 230 cd/m2 LED Open Frame Monitor |
| IDS-3110ER-23SVA1E | 10.4" SVGA 230 cd/m2 LED Open Frame Touch Monitor |
| Optional Items | |
| 170203183C | 3-Pin power cord (EU) |
| 96PSA-A36W12R1 | Adapter 100-240V 36W 12V 3A |
| 1700000243-11 | M cable DVI 19P(M)/DVI 19P(M) 191cm |
| 1700091800 | CABLE 9P/9P 1.8M M/F (T/S RS-232 Cable) |
