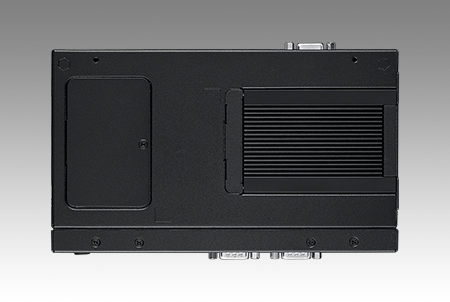

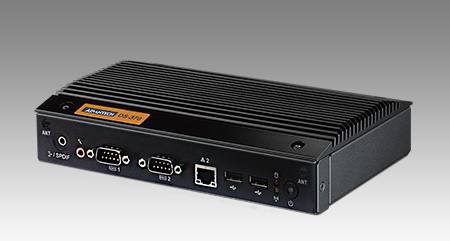

Advantech DS-370

Advantech DS-370 is fanless, low power Digital Signage Player. It supports Full HD output for simultaneous dual displays. It's not only a cost effective signage player, but also has an on-board 64G SSD to speed up system response times. The storage of DS-370 can be easily maintained via its slide in chassis design. DS-370 is pre-loaded with SUSIACCESS for Signage software for broadcast scheduling, content editing, and remote monitoring functions . As a cost effective solution, DS-370 is ideal for single or dual-display applications in public spaces.

Specifications

Processor System


CPU
Intel® Celeron® J1900 quad-core 2.0 GHz SoC processor

BIOS
AMI uEFI 64-Mbit



Memory


Technology
DDR3L 1333 MHz

Socket
2 x 204-pin SODIMM*

Max. Capacity
8 GB (up to 4 GB per SODIMM)



Display


Processor Graphics
Intel® HD Graphics

Max. Resolution
VGA: 2048 x 1280 @ 60Hz
HDMI: 1920 x 1080 @ 60Hz
DP++: 1920 x 1080 @ 60Hz

Output
Dual displays

Graphics Engine
DirectX® 11.1, , OGL 3.0, OCL 1.1, OGL ES 2.0
Encode: H.264, MPEG2/4, VC1, WMV9
Decode: H.264, MPEG2



Storage


SATA
1 x 2.5-inch SATA II HDD/SSD (7 mm height)

Others
mSATA, via the mini PCIe slot**



Ethernet


Interface
Gigabit LAN controller

Controller
Intel I211

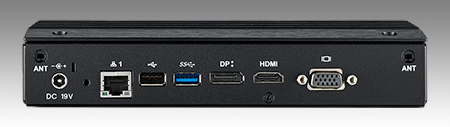

I/O Interface


HDMI
1

DP++
1

VGA
1

LAN
2

USB 2.0
3

USB 3.0
1

Audio
1 x Mic In, 1 x SPDIF/ Line Out (supports jack sensing via OS settings)

Serial Ports
2 x RS-232

Mini PCIe
2 x Full-size mini PCIe

SIM Socket
1 x SIM card (optional)

Power Input
1 (DC-in jack)



Power Requirement


Management
ACPI 3.0

Power Consumption
Idle mode: 4.39 W (w/o expansion)
Full mode: 10.85 W (w/o expansion)

Input Voltage
19 V DC in (ATX/AT mode, default ATX)

Others
Supports boot on power restore and scheduled boot up functions



Watchdog Timer


Output
Interrupt, system reset

Interval
Programmable by SUSIAccess



Physical Characteristics


Mounting
Supports VESA/DIN rail/wall mounting (optional)

Dimensions (W x D x H)
204 x 118.2 x 44.2 mm

Weight
1.275 kg



Environment


Operating Temperature
0 ~ 40 °C (32 ~ 104 °F) (w/HDD),
0 ~ 50 °C (32 ~ 122 °F) (w/SSD, Tc spec . need above 85°C)

Relative Humidity
95% @ 40 °C (non-condensing)

Random Vibration
1 Grms /5-500Hz /Operation

Shock
10G (11ms)/Operation,
30G (11ms)/Non-operation



Software Support


Microsoft
WindowsWES7E, Windows 7, WE8S, Windows 8

Linux
Linux Fedora 20



Certification


EMC
CE/FCC Class B, CCC, BSMI

Safety
UL, CB, CCC, BSMI (No RED certification)

  *If only one RAM, please insert it into the SODIMM 1 slot before booting up.
**64 GB of onboard micro SSD: Supported by T-part processes.




ORDERING INFORMATION

Available Modules
DS-370GB-U0A1E	DS-370, Intel J1900, barebone unit
DS-370GF-U0A1E	DS-370, Intel J1900, 64GB 2.5" SATA SSD, 4G RAM
DS-370GQ-U0A1E	DS-370, Intel J1900, 64GB 2.5" SATA SSD, 4G RAM, WES7E
